MS-L8080
Biochemistry
MS-L8080
Fully Automated Modular Biochemistry Analyzer
MS-L8080-image

MS-L8080 is a high-speed floor-standing and modular clinical chemistry analyzer, integrating up to 4 module combinations

<p>Ultra-high Testing Speed</p>-image

Ultra-high Testing Speed

  1. Constant high speed 2000T/H
  2. 410 sample positions ( including STAT), with continuous loading
  3. Dual-arm and dual-needle asynchronous sampling system,  only 1.8 seconds for each sampling

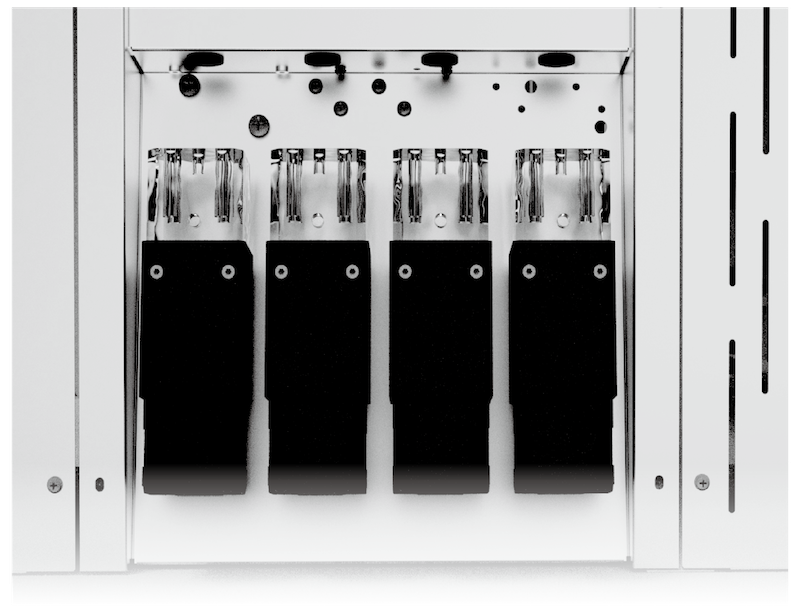

High-efficiency Intra-machine hemolysis

  1. Simulated mechanical arm, mimic manual preprocessing method for on-board hemolysis function, achieving automatic HbA1c detection
  2. Reducing experimental error of manual method
<p>High-efficiency Intra-machine hemolysis</p>-image
<p>High-precision Sampling System</p>-image

High-precision Sampling System

  1. Dual-arm and dual-needle
  2. Minimum sample volume 1.0μL, stepping by 0.1μL
  3. Avoiding the splashing of samples during the sampling and  transfer process

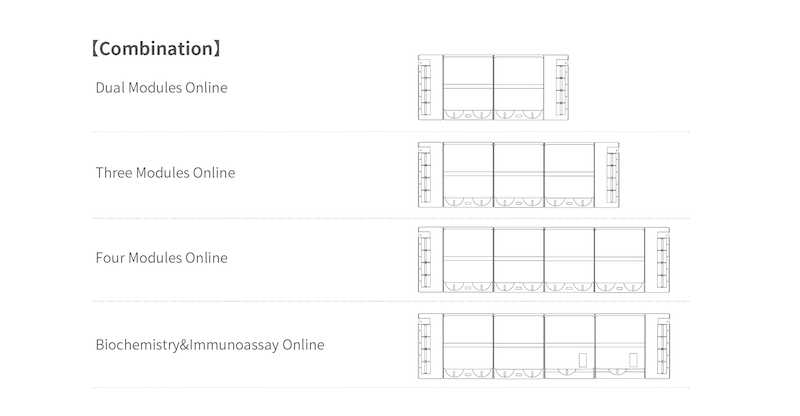

Integrated Modular System

  1. Up to 4 modules online
  2. Integrated combination of biochemistry and immunoassay system
<p>Integrated Modular System</p>-image
